IEI 산업용 보드 입니다.

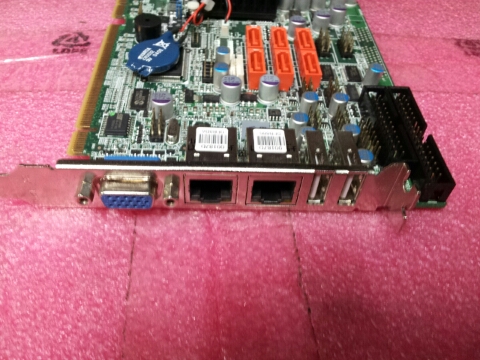

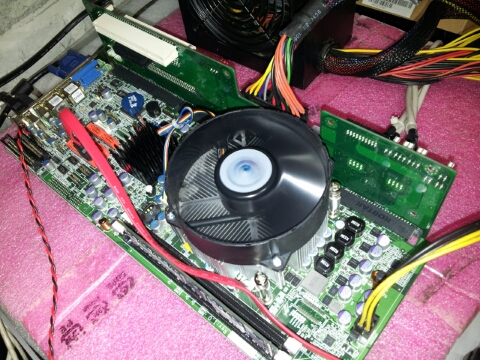

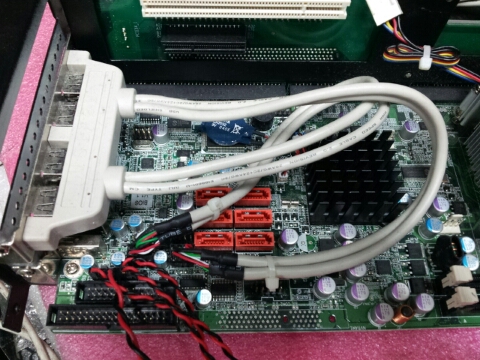

SBC B/D : PCIE-Q57A-R10

  CPU: LGA1156 socket supports Intel® Clarkdale (Dual Core) &
     Lynnfield (Quad Core) processor
  System Chipset: Intel® Q57
  BIOS: AMI BIOS
  System Memory: 2 x 240-pin dual-channel DDR3
    1333/1066/800 MHz SDRAM Slot up to 8GB
  Graphic: VGA Integrated in Intel® Q57
  Display Output:
  1 x VGA
  1 x SDVO interface
  Ethernet:
    Intel® 82583V (co-layout with 82574L) PCIe controller
    Intel® 82578DM (Hanksville) with Intel® iAMT 6.0 supported by
  iEZman software UI.
  I/O Interface:
 2 x RS-232
 14 x USB2.0 (2 on rear side, 12 on board by pin-header)
 6 x SATA II support RAID 0, 1, 5, 10
 1 x FDD
 1 x LPT
 1 x 6-pin wafer on board for KB/MS
 Super I/O: ITE IT8718F
  Digital I/O: 8-bit Digital I/O (4-bit input, 4-bit output )
  Infrared Interface: 1 x 5-pin infrared connector
  Audio:
    7.1 channel HD Audio kit with Realtek ALC883 codec support
    dual audio streams
  Watchdog timer:
 Software programmable 1-255 sec. by Super I/O:ITE IT8718F
 Power Supply: ATX Power (Support AT/ATX mode)
 Power Consumption:
    [email protected], [email protected], [email protected], [email protected],
   [email protected]
 (Intel® Core™ i5 6603.3GHz CPU with two 2GB 1066MHZ DDR3)



Slot B/D : PE-6SD3-R40

   Pci-e x16  : 1

   Pci-e  x4  : 1

   Pci          : 2
